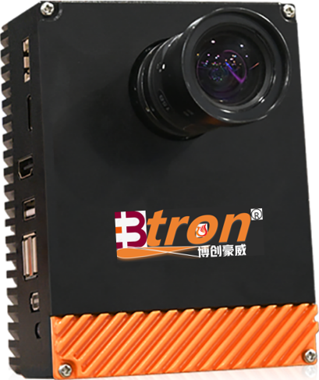

AI Industrial Camera
Built on Qualcomm SoC, Betron's industrial AI camera largely reduces cost compared to traditional industrial smart camera. With up to 48 megapixels, the camera possesses powerful image capture and codecs capabilities, AI performance ranging from 3~48Tops, and built-in mature industrial algorithms. Meanwhile, the camera provides end-to-end AI toolkit and supports customized development, achieves product changeover easily, and shortens traditional production changeover cycle by half.
Betron's industrial AI camera resolves the inspection challenges in large target surface and high precision scenarios with its ultimate cost-effectiveness. It can be widely applied to manufacturing industries like weaving, printing and dyeing, packaging, and machining, and can help enterprises achieve digital transformation and intelligent upgrade easily.
Betron's industrial AI camera resolves the inspection challenges in large target surface and high precision scenarios with its ultimate cost-effectiveness. It can be widely applied to manufacturing industries like weaving, printing and dyeing, packaging, and machining, and can help enterprises achieve digital transformation and intelligent upgrade easily.
Product details
Product Introduction
.png)
Specifications

Technical Specifications
Model
SVQ6490-1200C(standard)
Processor
Qualcomm QCS6490
OS
AidLux Fusion OS (industrial-grade Android+Linux fusion OS)
AI performance
12 TOPS INT8
Memory
8GB LPDDR4X
Storage
128GB UFS, supports expansion of high-speed TF memory cards
Lens Specifications
Resolution
4000 x 3000 (12MP)
Max. frame rate
30 fps
Color
color
Shutter
rolling
Pixel size
1.55 um
Sensor size
1/2.3''
Lens interface
CS mount 12mm focal length/F1.8 aperture (default configuration, user-replceble)
Peripheral Interfaces
Industrial IX gigabit ethernet network port
x 1
USB3.0 type C
x 1
USB2.0 type A
x 3
HDMI display
x 1
RS485
x 1
RS232
x 1
UART
x 1
GPIO
x 20 (2x opto-isolated input, 2x opto-isolated output)
Others
Trigger method
supports external trigger/soft trigger
Dimension:
108.4*80.5*82mm
Power supply
12V DC
Environment
working temperature 0~55C storage temperature -30~70℃
